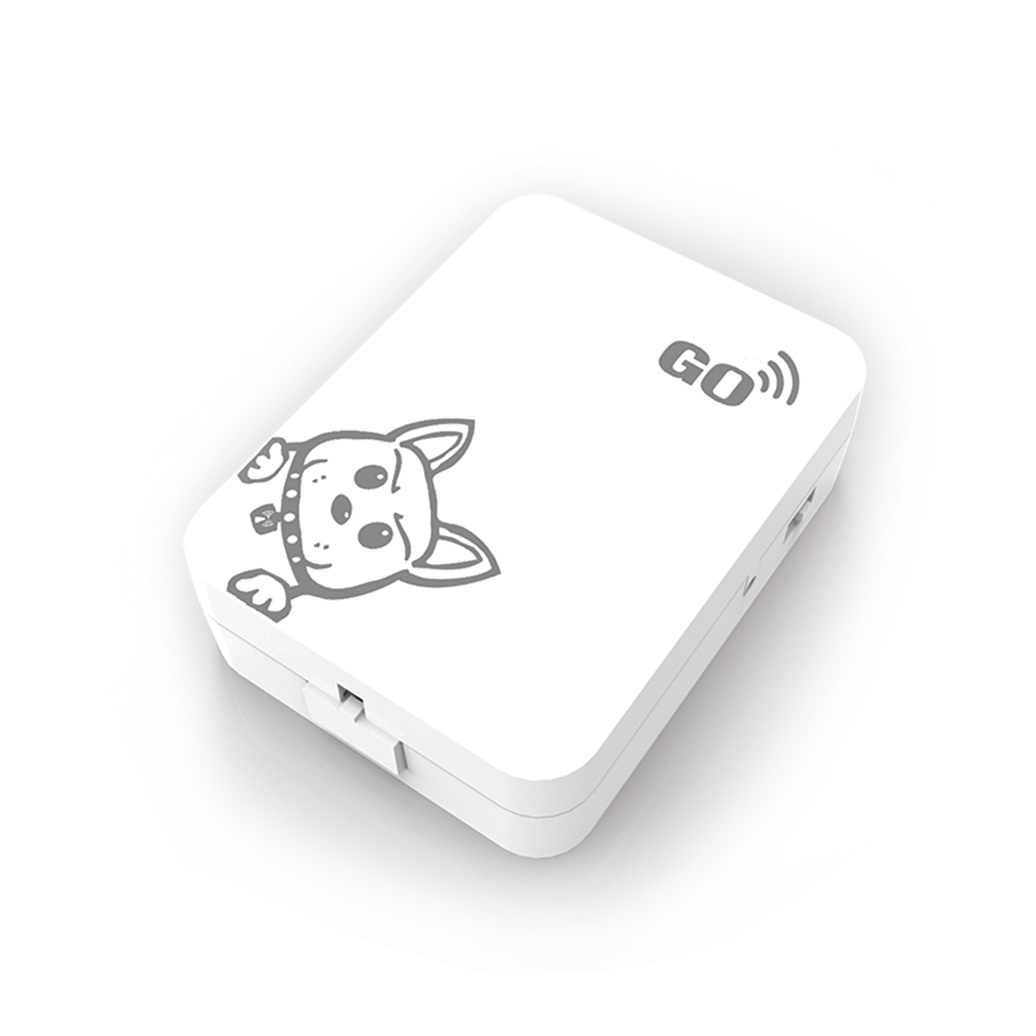

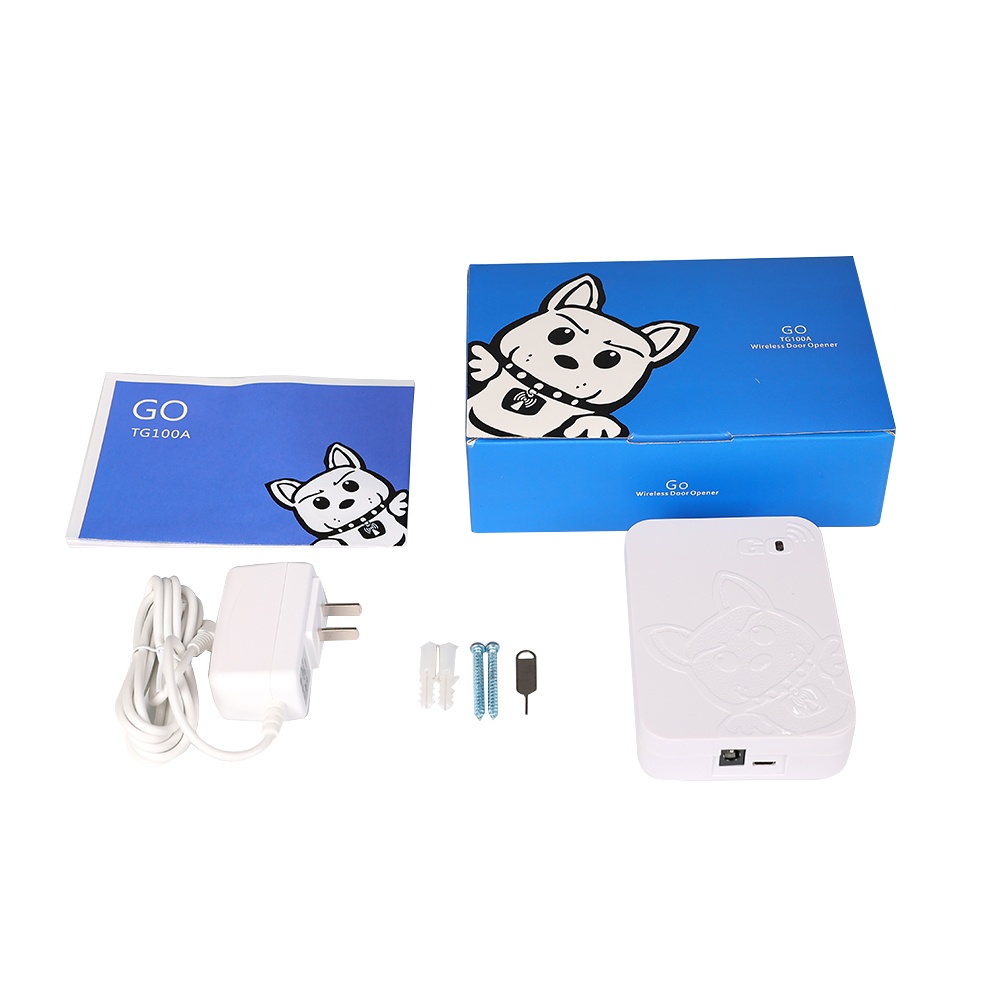

TG100A/TG100B
Features：
WiFi control the gate by free App of smart phone.
No-sim card and compatible with Android/IOS systems.
Master can manage max.100 users and 12 temporary users.
Compatible all gate & door operators from Xianfeng Machinery.
User can operate the gate & door operators at anytime and anywhere.
Technical data
| Model | TG100A | TG100B* |
| Power supply | DC 5V/12V | AC 220V |
| Rated power | 5W | 5W |
| Radio frequency | 433.92Mhz | - |
| Radio distance | ≥10m | |
| WiFi distance | ≥10m | ≥10m |
| Outline dimension | 113*80*25mm | 102*76*29.5mm |
*TG100B is special for rolling door poerator
