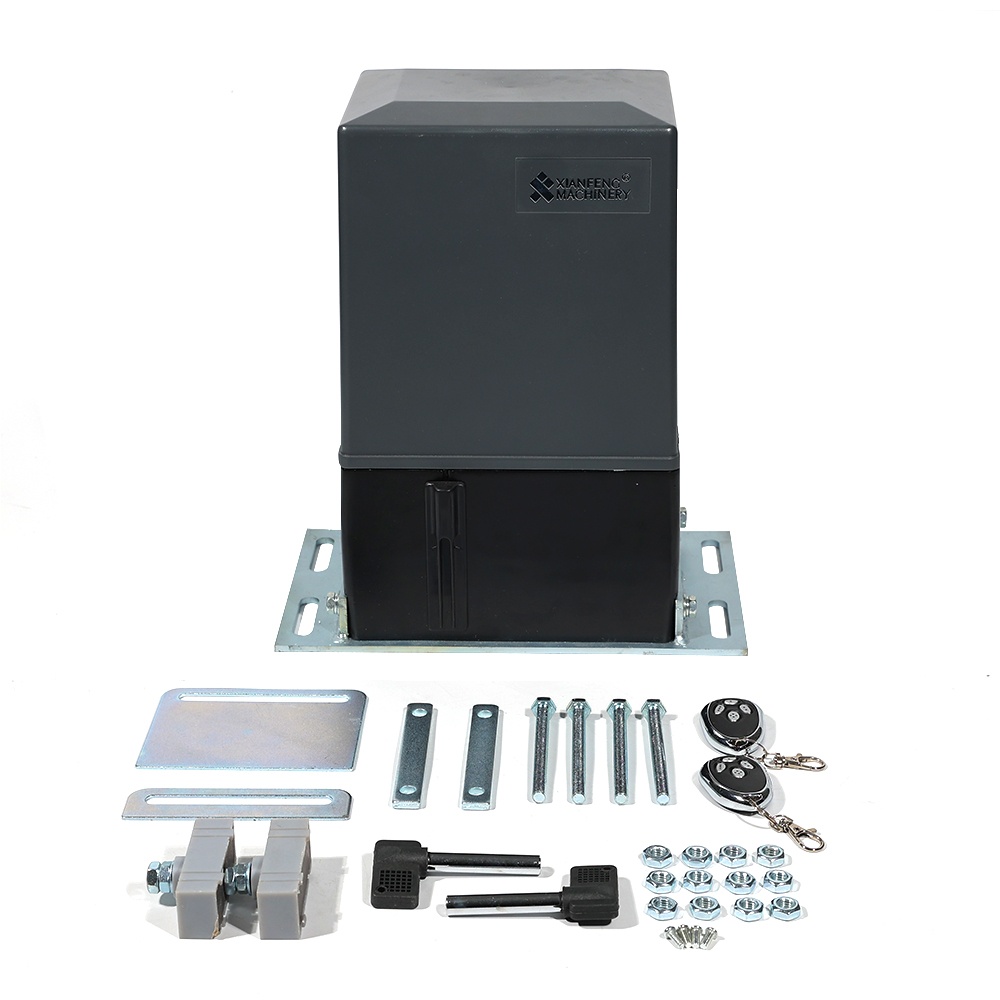

DKC3000S
Features：
Copper motor, with powerful starting torque, can drive 3000kgs gate.
Oil-immersed reducer, with low noise, good cooling performance, long service life.
Thermal protector inside, prevent the motor from burning due to the high temperature.
Manual release key in case of power failure.
Equipped with control box.Technical data
| Model | DKC3000S |
| Voltage | Three-phase AC 380V 50Hz |
| Motor speed | 1400rpm |
| Motor power | 750W |
| Output torque | 100N.m |
| Adapted door weight | ≤3000kg（19T）/≤2500kg（24T） |
| Opening speed | 12m/min（19T）/14m/min（24T） |
| No-load noise | 56dB |
| Center height of output shaft | 62MM |
| Output teeth | 19T/24T |
| Protection level | IP44 |
| Ambient temperature | -20℃~+50℃ (-45℃ can be customized) |
